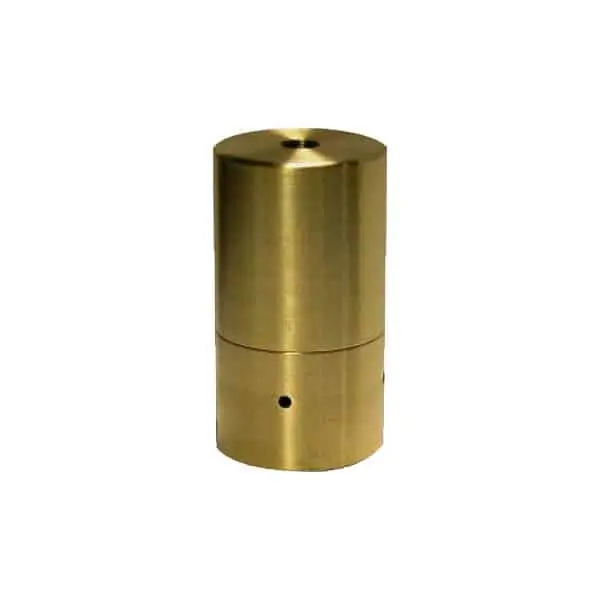

Piston Actuator

The Piston Actuator part CP61041 of Context Plus features a pneumatically driven piston that depresses a Schrader check valve, thereby venting the pressure from the top of the piston in the cylinder valve, allowing the piston to slide upward and commence cylinder discharge.

l

Online Enquiry

The Piston Actuator part CP61041 of Context Plus features a pneumatically driven piston that depresses a Schrader check valve, thereby venting the pressure from the top of the piston in the cylinder valve, allowing the piston to slide upward and commence cylinder discharge. The pneumatic pressure required to operate the Piston Actuator is obtained from the "M" port of a cylinder that is designated as "Master" cylinder and is either mechanically and/or electrically actuated. Multiple cylinders equipped with Piston Actuators can be activated from one master cylinder using 1/4" copper tubing or 1/4" metal flex hose. The Piston Actuator mounts directly to a top plug adapter, which is located on top of the cylinder valve.

  • High quality brass construction
  • Mounts directly on top of cylinder valves
  • Self-Venting

Sales Leaflet

View Leaflet

Approval Certificate

View Certificate

Installation Guide

View Installation Guide
