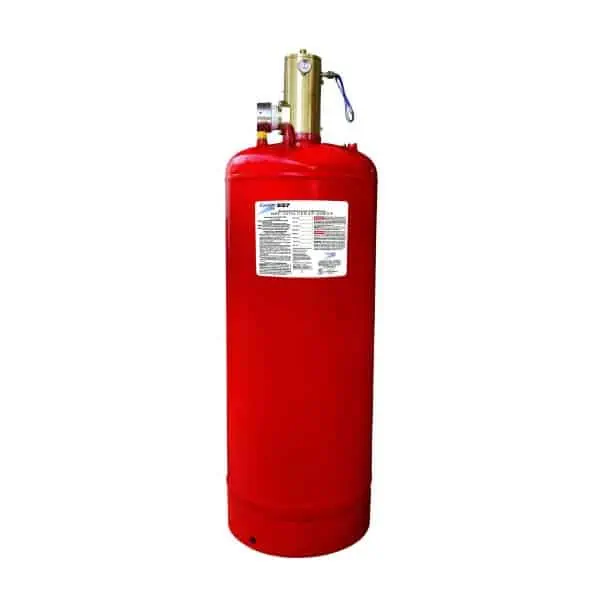

560 Lb. Fixed Extinguishant Cylinder / 2-1/2″ Valve C/W Top Plug Adapter – UL Listed
CIean Agent Extinguishing System cylinder, stored pressure type, having nominal charging capacity of 560 LB Clean Agent.
CIean Agent Extinguishing System cylinder, stored pressure type, having nominal charging capacity of 560 LB Clean Agent. This unit is super-pressurized to 360psi (24 bar) or 500psi (34 bar) with operating temperatures of 32 °F to 130 °F. This unit is designed for total flooding protection against Class A surface burning, Class B flammable liquid and Class C fires occurring within an enclosure. The Context Plus Clean Agent Fire Suppression system units are intended to be designed and installed in accordance with the Context Plus's Design, Installation, Operation and Maintenance Manual. These Fire Suppression system installations require the use of the Context Plus's Flow Calculation Software. Copies of the software and manuals may be obtained from Context Plus.
This 560 LB Fixed Extinguishant cylinder of Context Plus is manufactured, tested and stamped in accordance with DOT and TPED standards. In case of automatic or manual actuation, the pressure on the top of the piston is relieved and the piston slides open allowing cylinder discharge. All cylinders are equipped with back pressure type valve with 2 outlets, one transmits cylinder pressure to an optional low pressure supervisory switch which monitors the internal pressure of the cylinder, and the other is used to drive the piston actuators on a multiple cylinders system or to trigger a switch in case of cylinder discharge. The 560 LB Fixed Extinguishant cylinder has the following capacity:
|Model Number||Cylinder Size||Max. fill at 70lb/ft3||Min. fill at 30lb/ft3||Valve Size|
|CP90560-E||560 LB||561 LB||241 LB||2 1/2' Valve|
