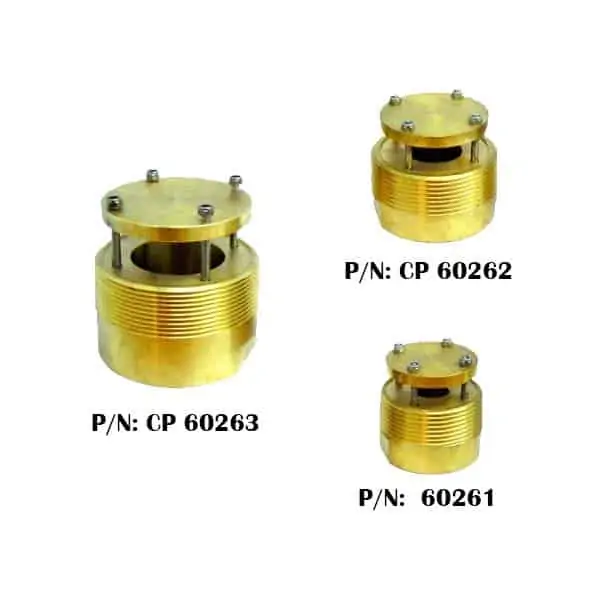

Manifold Check Valves ( 1″ ,1-1/2″ ,2-1/2″ ,4″ ) – UL Listed

Check valves are used when two or more agent storage cylinders are manifolded together with one common discharge piping configuration. Their purpose is to prevent the loss of agent in the event that any of the agent storage cylinders are not connected to the manifold at time of system discharge and to prevent back flow of agent into other cylinders attached to the manifold.

l

Online Enquiry

Check valves are used when two or more agent storage cylinders are manifolded together with one common discharge piping configuration. Their purpose is to prevent the loss of agent in the event that any of the agent storage cylinders are not connected to the manifold at time of system discharge and to prevent back flow of agent into other cylinders attached to the manifold. All components of the check valves are constructed from brass for durability and protection against corrosion. The metal to metal sealing area of the disc and seat is precision lapped, providing a very tight shut-off of both gas and liquid.

Part Number Description Valve Size
CP 60261 Check Valve 1"
CP 60262 Check Valve 1-1/2"
CP 60263 Check Valve 2-1/2"
CP 60264 Check Valve 4"

Sales Leaflet

View Leaflet

Approval Certificate

View Certificate

Installation Guide

View Installation Guide

Engineered Manual

View Engineered Manual
